P. 183
Image: Charles Hawes

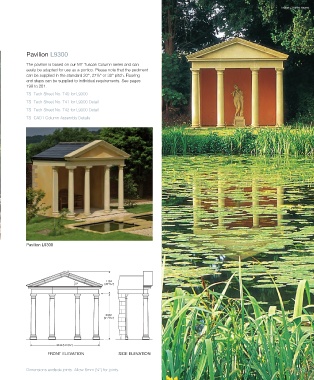

Pavilion L9300
The pavilion is based on our M7 Tuscan Column series and can
easily be adapted for use as a portico. Please note that the pediment
can be supplied in the standard 20°, 27 ⁄2° or 30° pitch. Flooring
1
and steps can be supplied to individual requirements. See pages
198 to 201.
TS Tech Sheet No. T40 for L9300
TS Tech Sheet No. T41 for L9300 Detail
TS Tech Sheet No. T42 for L9300 Detail
TS CAD1 Column Assembly Details
Pavilion L9300
1164
20° 20° (45 13 ⁄16")
2332
(91 13 ⁄16")
3634 (143 ⁄16")
1
FRONT ELEVATION SIDE ELEVATION
Dimensions exclude joints. Allow 6mm ( ⁄4”) for joints. 183
