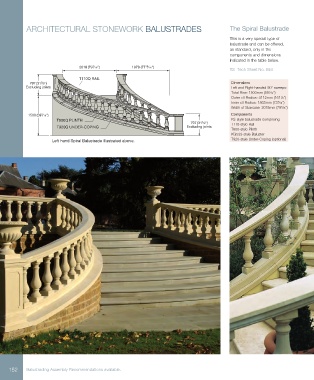

ARCHITECTURAL STONEWORK BALUSTRADES The Spiral Balustrade

This is a very special type of
balustrade and can be offered,
as standard, only in the
components and dimensions
indicated in the table below.
7
15
2018 (79 ⁄16") 1979 (77 ⁄16")
TS Tech Sheet No. B60
T110Q RAIL
3
797 (31 ⁄8") Dimensions
Excluding joints Left and Right-handed 90° sweeps:
Total Rise: 1500mm (59 ⁄16”)
1
Outer c/l Radius: 4112mm (161 ⁄8”)
7
Inner c/l Radius: 1865mm (73 ⁄16”)
7
Width of Staircase: 2018mm (79 ⁄16”)
7
1500 (59 ⁄16") Components
1
T900Q PLINTH FS-style balustrade comprising:
797 (31 ⁄8") T110-style Rail
3
T920Q UNDER-COPING Excluding joints
T900-style Plinth
KG533-style Baluster
Left hand Spiral Balustrade illustrated above. T920-style Under-Coping (optional)

152 Balustrading Assembly Recommendations available.
